SKU: 460874 | Brand: Panasonic | Condition: New
✔ In Stock

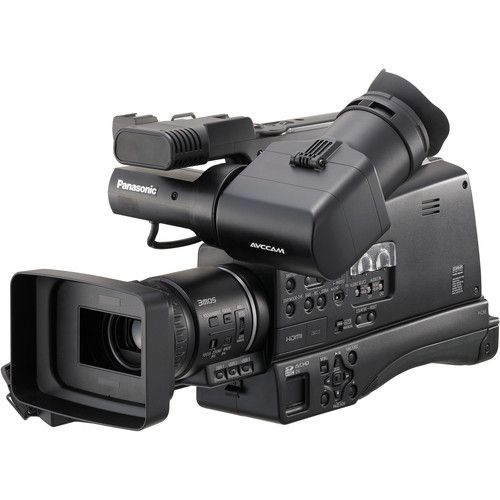

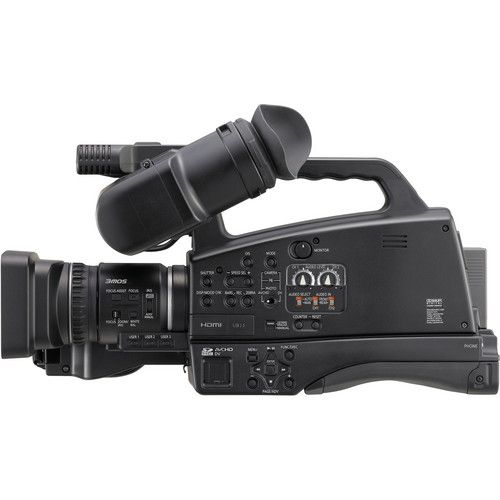

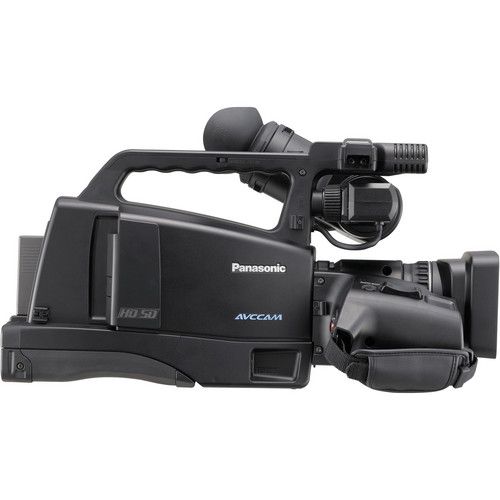

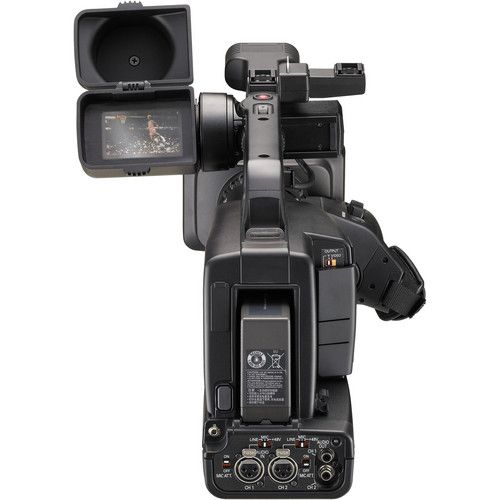

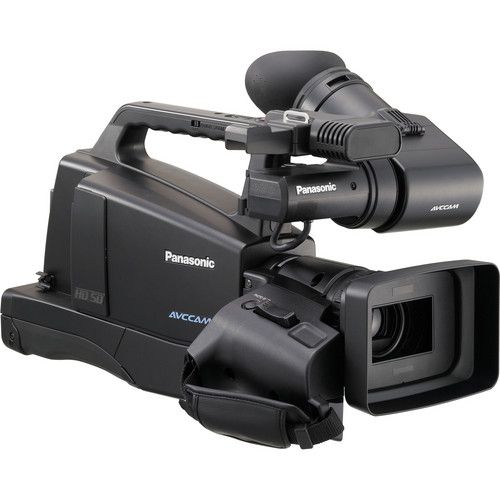

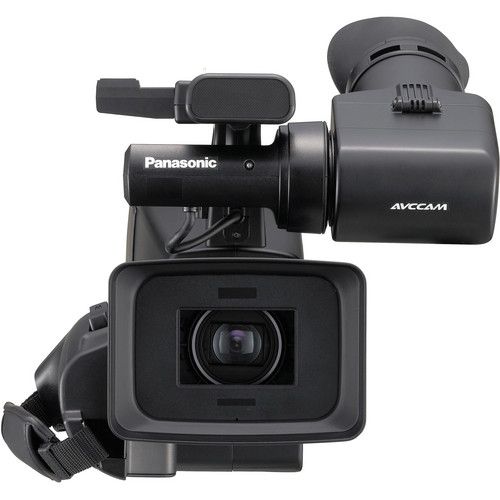

The Panasonic AG-HMC80 3MOS AVCCAM HD Shoulder-Mount Camcorder adds solid-state DV recording, XLR inputs, and an ENG form factor to the high-definition imaging capability of the popular AG-HMC40. At the same time, it maintains the smaller camera's bang-for-the-buck affordability by offering a laundry list of professional features unmatched in its class. Utilizing a highly efficient AVCHD codec to record stunning images to SD and SDHC memory cards, the AG-HMC80 gives you a wealth of shooting options, formats, and frame rates to give you exactly the look your application needs--whether that means weddings, events, educational, or even indie filmmaking. With this rock-solid unit perched on your shoulder, you'll have the professional stability--and versatility--every working videographer hopes for.
DV files can also be transferred via USB 2.0, when the camera recorder is set in AVCHD mode.
Signal System | 1080/60i, 1080/30p (over 60i), 1080/24p (native) 720/60p, 720/30p (over 60p), 720/24p (native) HA, HG and HE mode: 1080/60i only 480/60i, 480/30p (over 60i), 480/24p (over 60i) |
Recording Format | AVCHD: MPEG-4 AVC/H.264 DV: AVI Type 2
Recording Modes |
Image Device | 1/4" 3MOS Sensors |
Lens | 12x zoom, F1.8 to 2.8 (f=4.0 mm to 48 mm) 35mm equivalent (video): 40.8 mm to 490 mm (16:9) 35mm equivalent (still image): 41.3 mm to 496 mm (3:2), 40.8 mm to 490 mm (16:9), 45.0 mm to 540 mm (4:3) |
Filter Diameter | 43mm |
Built-in ND Filter | Automatic On/Off Interlock w/Iris |
Minimum Focus Distance | Approx. 35.4" (0.9m) |
Gain Selection | Video: 0 dB to 24 dB (Variable in 1 dB step; USER button allocation; up to 34 dB using the High Gain setting) Still Image: 0 dB to 18 dB (Variable in 1 dB step) |
White Balance | ATW, ATW LOCK, preset 3200 K, preset 5600 K, Ach or Bch |
Shutter Speed | Preset Video: 60i/60p mode: 1/60 sec. to 1/2000 sec. (7 steps) 30p mode: 1/30 sec. to 1/2000 sec. (8 steps) 24p mode: 1/24 sec. to 1/2000 sec. (8 steps) Still Image: 1/2 sec. to 1/2000 sec. (16 steps)
Synchro Scan Slow |
Minimum Illumination | 1 lux (Gain +34 dB, Slow Shutter: 1/2 sec.) |
Digital Zoom | 2x/5x/10x |
Recording Time | AVCHD Approx. 180 minutes (in PH mode with 1920 x 1080 pixels and using a 32GB SDHC Memory Card)
DV |
Viewfinder | 2.7", 230,000 Pixels (Flip-up for LCD) |
Memory Card Slot | SD, SDHC |
Scan Matching | Yes Different Ranges for Different Record Modes |
Audio Compression | Dolby Digital (2 ch) Linear PCM (Digital/2 ch) |
Audio Sampling | 48 kHz |
Quantization | 16 bit |
Input and Output Connectors | Component: BNCx3 (x1 Output) Composite: BNC (x1 Output, shared w/Component) HDMI: HDMI (x1 Output) FireWire: 6-pin IEEE 1394 (x1 Input/Output) Line/Mic: 3-pin XLR (x2 Input) Microphone: 3.5mm Stereo Mini (x1 Input) Audio Out: Pin Jack (x2 Output) Headphone: Stereo Mini Jack USB: USB 2.0 Camera Remote: Super Mini Jack (2.5 mm diameter) for Zoom, Mini Jack (3.5 mm diameter) for Focus and Iris |
Power Requirements | 7.2VDC (with Battery) 7.3VDC (with AC Adapter) |
Power Consumption | 11W |
Operating Temperature | 32-104°F (0-40°C) |
Dimensions | 10.5 x 9.2 x 18" (27 x 23 x 46 cm) (excluding the projection part) |
Weight | 7 lb (3.2 kg) 7.3 lb (3.3 kg) with battery |
