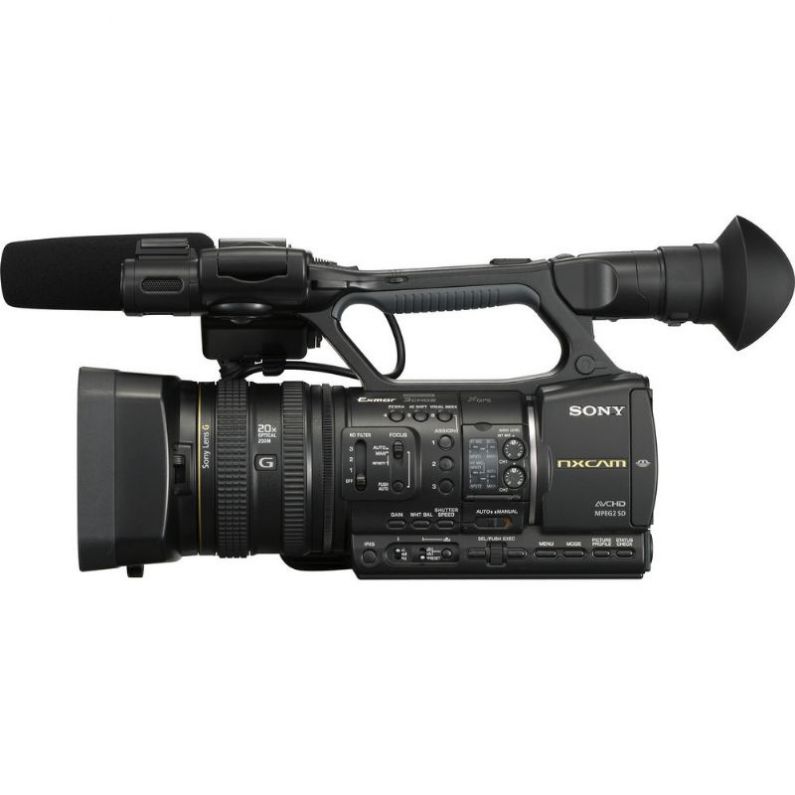

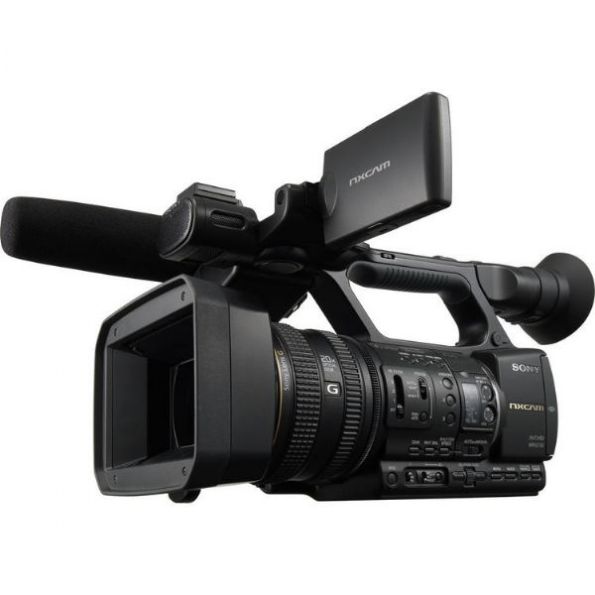

Sony HXR-NX5P NXCAM Professional Camcorder

The first in Sony's line of NXCAM solid-state camcorders, the HXR-NX5U is also the company's first professional-level AVCHD camcorder. And while it may look similar to its HDV predecessor, the HVR-Z5U, in fact this is a very different animal. Its ability to capture HD and SD video in AVCHD and MPEG-2 formats--and save it to solid state media--is only one of its distinctive traits. Full-raster 1920 x 1080 video is another, including the option of recording 720/60p video as well as 60i, 30p and 24p. And because the NX5U can capture to media cards plus an optional flash memory unit, you can simultaneously record a different signal to each, whether HD + a backup or HD + SD. The footage is then easily downloaded to a computer or backup drive using USB 2.0. Three 1/3" CMOS Exmor sensors, a 20x 'G' lens and dual XLR inputs are carried over from the Z5U, but the beautiful video and audio these elements produce are now in service to a higher level of professional control. An HD-SDI output makes this one of the most affordable camcorders to provide uncompressed 4:2:2 output, while HDMI and RCA outputs allow for connection to professional and consumer-grade monitors alike. Timecode sync between two or more cameras is also possible, and the addition of GPS technology makes for another first on an AVCHD pro camcorder. Meanwhile, a newly designed user interface--including convenient MODE buttons and a touch-screen menu--make setup and operation easier than ever. And if touch-screen controls aren't your thing, there are the usual navigation keys and thumbwheel to help get you around. Whether you're recording at one of the camera's four bit rates (24/17/9/5Mbps), taking advantage of simultaneous or relay HYBRID capture, or recording AC-3 or linear PCM audio, the HXR-NX5U gives you near-professional flexibility and control on a prosumer budget. Exmor 3 CMOS SensorsThree Exmor CMOS sensors with a ClearVid array comprise a state-of-the-art sensor system from Sony which realizes high resolution, high sensitivity, a wide dynamic range, and excellent color reproduction, regardless of the codec.Memory Recording and HYBRIDMemory recording on affordable consumer memory cards offers workflow efficiency at both the shooting and editing stages. Combined with hybrid recording, using an optional HXR-FMU128, the user achieves a totally IT-based workflow, with the added bonus of instant data backup.AVCHD FormatThe revolutionary AVCHD recording format, which utilizes the MPEG-4, AVC/H.264 video codec, allows users to record HD video footage onto random access media, such as Memory Stick PRO Duo and SDHC memory cards. Its intelligent and sophisticated algorithm makes AVCHD a highly efficient compression format ideal for memory recording and IT-based editing.G Lens"G Lens", the lens featured in other successful Sony camcorders, already enjoys an excellent industry reputation. In the HXR-NX5U, this sophisticated lens is optimized to complement the camcorder's advanced image sensor and image-processing technology.Natural-touch Lens OperationThe focus, zoom and iris ring are positioned on the lens barrel, and this design offers the same operability as general interchangeable lenses. Focus, zoom and iris control can all be managed easily.Six-blade IrisThe six-blade iris diaphragm is nearly circular, enabling the creation of an extremely beautiful background blur.Built-in ND filtersThe HXR-NX5U is equipped with three built-in ND (Neutral Density) filters--1/4, 1/16, 1/64--which help to vary the depth of field with iris control.Active SteadyShot FeatureActive SteadyShot® feature is a new, enhanced image stabilization system that provides a powerful shake-reduction capability, vital for handheld usage. Additional stabilization is provided by the increased optical lens coverage area and by improved detection with state-of-the-art compensationGPSA built-in global positioning system (GPS) locator allows satellite navigation data to be recorded directly onto footage for reference or posting on popular internet mapping systems. GPS data can be invaluable when searching for footage or to provide evidence of where and when footage was recorded.Relay Record with Dual Memory SlotsAnother new feature is continuous recording between two memory card slots. The new HXR-NX5U camcorder automatically cycles between the dual memory slots. When using two, 32-GB memory cards, six hours of continuous HD footage can be recorded.Optional 128GB Flash Memory Unit, HXR-FMU128Sony proudly introduces the HXR-FMU128, an optional 128-GB flash memory unit exclusively designed for the HXR-NX5U camcorder. This enables hybrid recording of video footage - another world first for an AVCHD professional camcorder. Other capabilities include simultaneous recording of HD and HD video footage, and even the combination of HD and SD, realizing an instant backup in the desired format. The 128-GB storage capacity provides continuous recording for almost half a day at the

• Imaging Device: 3-chips 1/2.8 type "Exmor" CMOS Sensor
• Microphone: Omni-directional stereo electret condensermicrophone
• Built-in Optical Filters: OFF: Clear, 1: 1/4ND, 2:1/16ND, 3: 1/64ND
• Effective Picture Elements: Approx. 2.07M
• Gain Selection: -6, -3, 0, 3, 6, 9, 12, 15, 18, 21,24, 27, 30 dB, AGC
• Minimum Illumination: 50i : 1.0lux(1/25 Shutter Speed,iris/gain Auto) or 60i : 1.2lux(1/30 Shutter Speed, iris/gain Auto)
• Shutter Speed (Time): 1/3 -1/10,000
• Slow & Quick Motion Function: 1080p: Frame rateselectable 1.2.3.6.12.25,50 fps
• Audio Recording:
  • XAVC S HD : Linear PCM 2ch, 16bit, 48kHz
  • AVCHD: Linear PCM 2ch, 16-bit, 48 kHz / Dolby Digital 2ch, 16-bit, 48 kHz
  • DV: Linear PCM 2ch, 16-bit, 48 kHz
• Continuous Operating Time:
  • Approx. 240 min. with NP-F770 battery (while recording with LCD, AVCHD 1080/50i or 60i FX)
  • Approx. 440 min. with NP-F770 battery (while playing with LCD, AVCHD 1080/50i or 60i FX)
• Dimensions (WxHxD): 7" x 7 7/8" x 15 1/4" (With theaccessories (lens hood, large eyecup), excluding the grip belt and includingthe projecting parts)
• Mass:
  • Approx. 4 lb 10 oz (body)
  • Approx. 5 lb 8 oz (with lens hood, ,eyecup, NP-F770 battery)
• Operating Temperature: 32°F to 104°F
• Power Consumption:
  • Approx. 7.5 W (while recording with viewfinder and AVCHD 1080/50i or 60i FX)
  • Approx. 7.8 W (while recording with LCD and AVCHD 1080/50i or 60i FX)
• Power Requirements:
  • DC In: 8.4V
  • Battery: 7.2 V
• Recording Frame Rate NTSC Mode:
  • XAVC S (1920 x 1080)@59.94p, 29.97p, 23.98p, 50 Mbps
  • AVCHD (1920 x 1080)@59.94p,PS mode (28 Mbps)
  • AVCHD (1920 x 1080)@59.94i/29.97p/23.98p,FX mode (24 Mbps)FH mode(17 Mbps)
  • AVCHD (1440 x 1080)@59.94i,HQ mode (9 Mbps) LP mode (5 Mbps)
  • AVCHD (1280 x 720)@59.94p,FX mode (24 Mbps)FH mode (17 Mbps) HQ mode (9 Mbps)
  • "DV (720 x 576) @59.94i,25 Mbps
• Recording Frame Rate PAL Mode:
  • XAVC S (1920 x 1080)@50p, 25p, 50 Mbps
  • AVCHD (1920 x 1080)@50p ,PS mode (28 Mbps)
  • AVCHD (1920 x 1080)@50i/25p ,FX mode (24 Mbps)FH mode(17 Mbps)
  • AVCHD (1440 x 1080)@50i ,HQ mode (9 Mbps) LP mode (5 Mbps)
  • AVCHD (1280 x 720)@50p ,FX mode (24 Mbps)FH mode (17 Mbps) HQ mode (9 Mbps)
  • "DV (720 x 576) @50i ,25 Mbps
• Recording Media: Memory Stick Pro Duo(TM) andSD/SDHC/SDXC compatible (x1) SD/SDHC/SDXC (x1)
• Recording/Playback Time:
  • XAVC S HD@LPCM 2ch 50 Mbps: Approx. 155 min with 64 GB memory card
  • AVCHD@LPCM 2ch PS Mode:
    • Approx. 290 min with 64 GB memory card
    • Approx. 145 min with 32 GB memory card
  • AVCHD@LPCM 2ch FX Mode:
    • Approx. 340 min with 64 GB memory card
    • Approx. 170 min with 32 GB memory card
  • AVCHD@LPCM 2ch FH Mode:
    • Approx. 450 min with 64 GB memory card
    • Approx. 225 min with 32 GB memory card
  • DV:
    • Approx. 280 min with 64 GB memory card
    • Approx. 140 min with 32 GB memory card
  • Storage Temperature: -4°F to +140°F
  • Video Recording Format:
    • XAVC S HD:MPEG4-AVC/H264 4:2:0 Long profile
    • AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible DV
  • Audio In: XLR-type 3-pin (female) (x2), line/mic/mic+48 V selectable
  • Audio Out: Stereo mini jack (x1)
  • Composite Video Out: BNC (×1), Composite 1.0Vp-p, 75 O
  • DC In: DC jack
  • Digital Audio/Video Output(s): HDMI connector - Type A(1)
  • Earphone: Stereo mini jack (x1)
  • Remote: Stereo mini mini jack (x1)
  • SDI Out: BNC type (x1), SD/HD/3G(Level-B) selectableSMTPE 259M/292M/424M/425M standards
  • USB: Multi/Micro USB jack (x1)
  • Lens Mount: Fixed
  • Built-in LCD Monitor: 8.8 cm (3.5 type) Approx. 1.56 Mdots.
  • Viewfinder: 1.0 cm (0.39 type) OLED Approx. 1.44 M dots
