Canon EOS 90D Camera Specifications

Lens & Sensor

• Lens Mount: Canon EF-S
• Camera Format: APS-C (1.6x Crop Factor)
• Sensor Type: CMOS
• Sensor Size: 22.3 × 14.8 mm
• Resolution:
  • Actual: 34.4 MP
  • Effective: 32.5 MP
  • Max: 6960 × 4640
• Aspect Ratios: 1:1, 3:2, 4:3, 16:9
• Bit Depth: 14-Bit
• File Formats: JPEG, RAW

Exposure & Shooting

• ISO Range: Auto, 100–25,600 (Extended: 100–51,200)
• Shutter Speeds:
  • Mechanical: 1/8000–30s + Bulb
  • Electronic: 1/16,000–30s
• Metering: Center-Weighted, Evaluative, Partial, Spot
• Exposure Modes: Aperture Priority, Manual, Program, Shutter Priority
• Exposure Compensation: ±5 EV (1/3, 1/2 steps)
• Metering Range: 1–20 EV
• White Balance: Auto, Daylight, Cloudy, Shade, Tungsten, Fluorescent, Flash, Custom, Kelvin
• Continuous Shooting:
  • Up to 11 fps (max)
  • 10 fps (RAW: 25 shots, JPEG: 58 shots)
  • 7 fps (sustained)
• Interval Recording: Yes
• Self-Timer: 2s / 10s
• Mirror Lock-Up: Yes

Video

• Recording Formats: MP4 / H.264
• Resolutions:
  • UHD 4K (3840 × 2160) @ 25p/29.97p
  • Full HD (1920 × 1080) @ 25p/29.97p/50p/59.94p/100p/119.88p
  • HD (1280 × 720) @ 50p/59.94p
• External Recording: 4:2:2 8-Bit, UHD 4K up to 29.97p
• Recording Limit: 29 min 59 sec
• Audio:
  • Built-in Stereo Mic
  • External Mic Input (3.5mm)
  • Audio Format: AAC

Focus

• Focus Modes: Continuous AF (C), Single AF (S), Manual (M)
• AF Points:
  • 45 Cross-Type (Phase Detection)
  • 5481 Selectable Points
• AF Sensitivity: -3 to +18 EV

Viewfinder & Monitor

• Viewfinder: Optical Pentaprism
  • Coverage: 100%
  • Magnification: ~0.95x
  • Eye Point: 22 mm
  • Diopter: -3 to +1

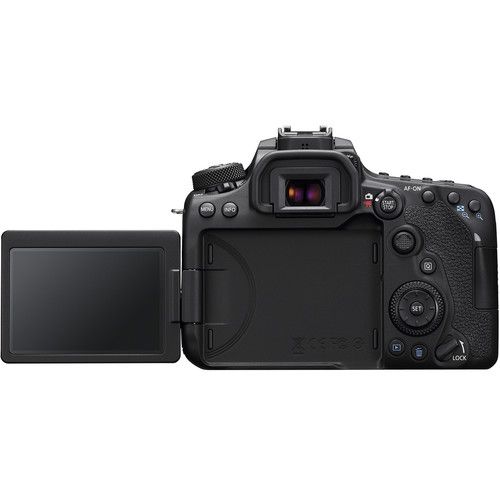

• Monitor:
  • 3" Articulating Touchscreen LCD
  • Resolution: 1.04M dots

Flash

• Built-In Flash: Yes
• Modes: Auto, Manual
• Guide Number: 12 m @ ISO 100
• Sync Speed: 1/250s
• Compensation: ±3 EV (1/3, 1/2 steps)
• System: eTTL
• External Flash: Hot Shoe

Interface & Connectivity

• Memory: 1 × SD/SDHC/SDXC
• Ports: 3.5mm Headphone, 3.5mm Mic, HDMI-C (Mini), USB 2.0 (Micro-B)
• Wireless: Wi-Fi, Bluetooth
• GPS: None

Environmental

• Operating Temp: 32–104°F (0–40°C)
• Humidity: 0–85%

Physical

• Battery: LP-E6N (7.2 VDC, 1865 mAh, ~1300 shots)
• Dimensions: 5.54 × 4.13 × 3.02" (140.7 × 104.8 × 76.8 mm)
• Weight: 1.54 lb / 701 g (Body Only)

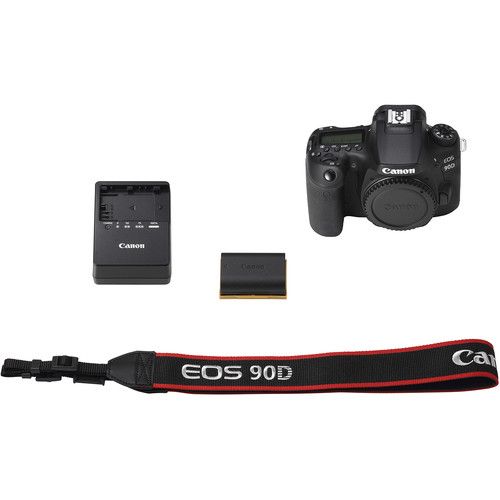

• Canon EOS 90D DSLR Camera (Body Only)
• Canon LP-E6N Lithium-Ion Battery Pack
• Canon LC-E6 Charger for LP-E6 Battery Pack
• Canon Eyecup Eb
• Canon RF-3 Body Cap for Canon EOS Cameras
• EC2 Wide Camera Strap
• Brand New Factory Fresh Import Model
