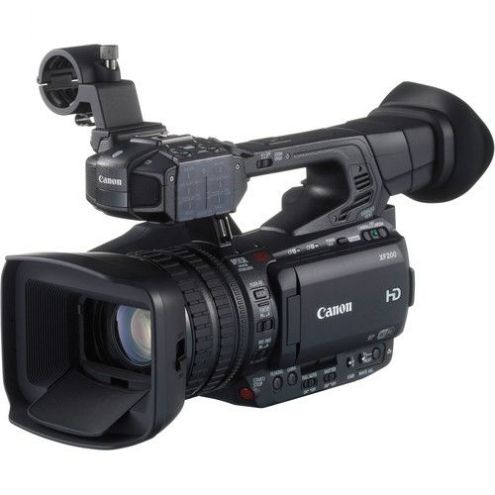

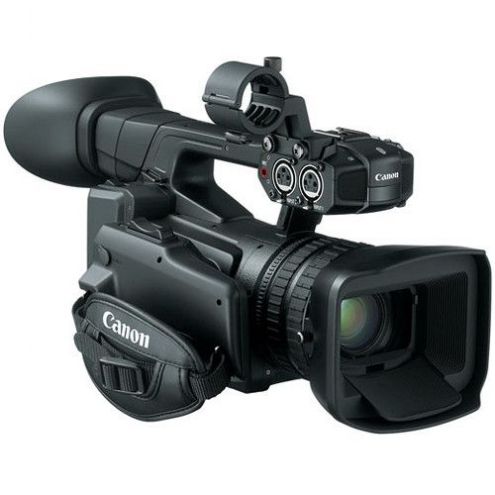

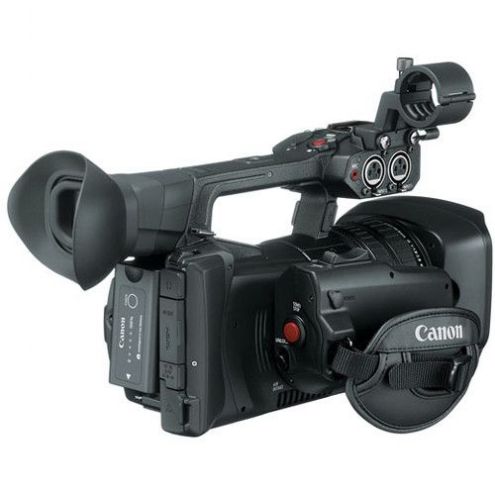

Canon XF200 HD Camcorder

The Canon XF200 is a compact, high-performance Professional Camcorder designed to fulfill a broad spectrum of shooting requirements for users working on sports production, ENG, documentaries, commercials and corporate shoots, as well as for independent movie productions, government applications, film schools, colleges, weddings, and other event videography. The camcorder features a wide-angle 20x optical zoom lens with three control rings, full image stabilization, infrared capabilities, flexible MXF/MP4 dual recording at various data rates, two/four-channel audio recording, a network interface, and dual-band Wi-Fi®. A versatile Canon 20x HD wide-angle video lens captures images with outstanding clarity across a broad 26.8–576mm* zoom range. A wide dynamic range gamma setting prevents overexposure even for bright areas of an image and/or with non-uniform colors. An eight-blade circular aperture provides natural and visually pleasing bokeh. Three separate lens rings offer independent control of focus, zoom, and iris/aperture settings. A new Five-Axis Dynamic SuperRange OIS System further reduces the effects of camera shake, and a new rotating handgrip enables comfortable camera positioning at all shooting angles from high to low. Dual-frequency Wi-Fi® and a CAT-5 Ethernet connector enable browser preview during shoots, in addition to FTP transfer to external PCs or laptops. The XF200 can also be used with Canon’s new RC-V100 Remote Controller to provide full access to all important user functions, including start/stop, shutter/gain, zoom/focus/iris, white balance, black gamma, and more. Canon XF200 Camcorder Features: 26.8mm Wide, 20x Optical Zoom Lens with 3 Separate Lens Rings AF options (Instant AF, Face Detection) and Reduced MOD Enhanced Image Stabilization Performance Ergonomic, Rotating Grip Equipped with Wide DR Gamma (600%) Mode and Refined, 8-bladed Circular Aperture Infrared, High-sensitivity Shooting Function with Enhanced Exposure Performance Professional 0.45-inch Color Viewfinder and Precise 3.5" OLED Panel MXF and MP4 Dual Codec Recording Slow and Fast Motion Function Supported (MXF) 35 Mbps 1440x1080 Recording Supported for Broadcast Usage (MXF) Three Memory Card Slots 5 GHz and 2.4 GHz Dual-frequency Built-in Wi-Fi® Capability Ethernet LAN Terminal Browser Remote, FTP File Transfer (MXF/MP4) Functions Featured Four-channel Audio Recording

•  Standard Definition or High Definition: High Definition
• Power Supply (rated): 7.4V DC (battery pack), 8.4V DC (DC-IN)
• Video Recording system:
  • Compression: Compression: 8 Bit MPEG-2 Long GOP
  • Color Space: 4:2:2
  • File Format: MXF and MP4
  • Recording Modes:
    • 50Mbps MXF (CBR) 4:2:2: 1920 x 1080 (60i/30p/24p), 1280 x 720 (60p/30p/24p)
    • 35Mbps MXF (VBR) 4:2:0: 1920 x 1080 (60i/30p/24p), 1440 x 1080 (60i), 1280 x 720 (60p/30p/24p)
    • 25Mbps MXF (CBR) 4:2:0: 1440 x 1080 (60i/30p/24p)
    • 35Mbps MP4: 1920x1080 (60p)
    • 24Mbps MP4: 1920x1080 (30p/24p)
    • 17Mbps MP4: 1280x720 (60p)
    • 9Mbps MP4: 1280x720 (30p/24p)
    • 3Mbps MP4: 640x360 (30p/24p)
• Audio Recording System: 2/4-Channel, Linear PCM,16-Bit, 48 kHz (MXF)
• Image Sensor: (1) 1/2.84" CMOS
• Total Pixels: Approx. 3.09 megapixels (2208 x 1398 )
• Effective Pixels: Approx. 2.91 megapixels (2136 x 1362)
• Maximum recording Time:
  • 64 GB Compact Flash (CF) card
    NOTE: Greater capacity is possible when two cards are used.
    • 25Mbps: 310 Minutes
    • 35Mbps: 225 Minutes
    • 50Mbps: 160 Minutes
• Lens:  Canon 20x HD L Series Zoom, 3.67 - 73.4mm (35mm equivalent28.8 - 576mm), f/1.8-2.8
• Focusing System:
  • TVAF plus External Phase Difference Metering Sensor
  • Autofocus:
    • High Speeds AF
    • Medium AF
    • Normal AF
    • Face Priority
    • Face Only AF)
  • Manual
  • Full Manual
• Manual Exposure:  Yes
• Max Shutter Speed:  1/2000
• Minimum Focusing Distance:
  • Wide Macro: 0.39" (10mm)
  • Entire Zoom Range: 1.97 ft (60cm)
• White Balance:
  • Auto
  • Custom (2,000K-15,000K in 100K increments)
  • Daylight
  • Tungsten
• Frame Rate: 60p, 60i, 30p, 24p (50p, 50i, 25p in PAL mode)
• Minimum Illumination:
  • Full Auto Mode: 2.9 lux (Shutter Speed: 1/60, Gain +27dB)
  • Manual Mode: 0.1 lux (Shutter Speed: 1/4, Gain +33dB)
• Image Stabilization: Optical system (lens shift system) + electrical compensation (image rotation, yaw and pitch compensation)
  • Modes: (Standard IS, Powered IS, Dynamic IS, OFF)
• Filter Diameter: 58mm
• Viewfinder: 0.45" color widescreen, approx. 1,230,000 dots,approx. 100% field of view
• LCD Screen: Rotating 3.5" Wide Screen OLED Display (Approx. 1.23 million dots)
• Microphone: Stereo electret condenser microphone
• Recording Media:
  • CF Card (2 slots): MXF files
  • SD Card (1 slot): MP4, still images, custom picture data, clip metadata, and menu settings
• USB Terminal: Mini-B USB 2.0 Hi-Speed
• Video Terminal: 3G/HD-SDI, HDMI, A/V terminal 3.5mm mini-jack
• Audio Terminal: A/V terminal 3.5mm mini-jack, XLR 3-pin jack (2),BNC, HDMI, headphone jack
• HDMI Terminal: Yes (Type A)
• AV Mini Terminal/Headphone Terminal: 3.5mm stereo mini-jack
• Remote Control Terminal: Yes (compatible with LANC protocol)
• Operating Temperature range: 32° -104°F (0° - 40°C), 85% relative humidity
• Dimensions:  Approx. 5.7" x 6.2" x 10.4"  (144 x 158 x 264mm)(excluding lens hood, microphone holder unit, eye cup, and grip belt)
• Weight:
  • Excluding lens hood and eyecup: Approx. 3.44 lbs. (1560g)
  • With lens hood, grip strap: Approx. 4.32 lbs. (1960g)
