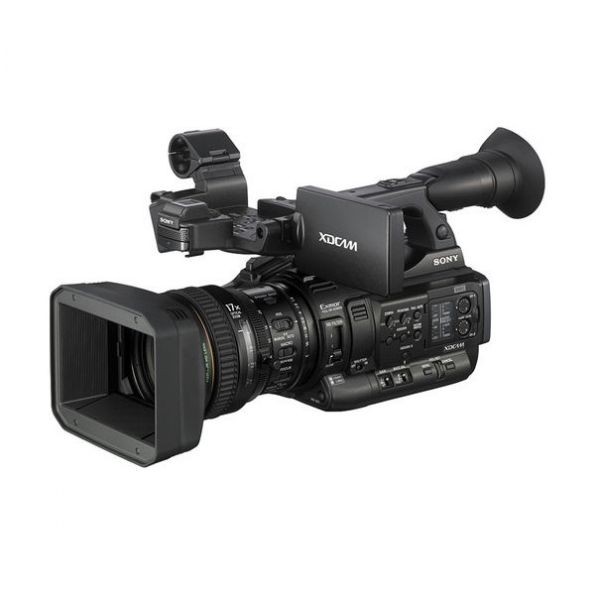

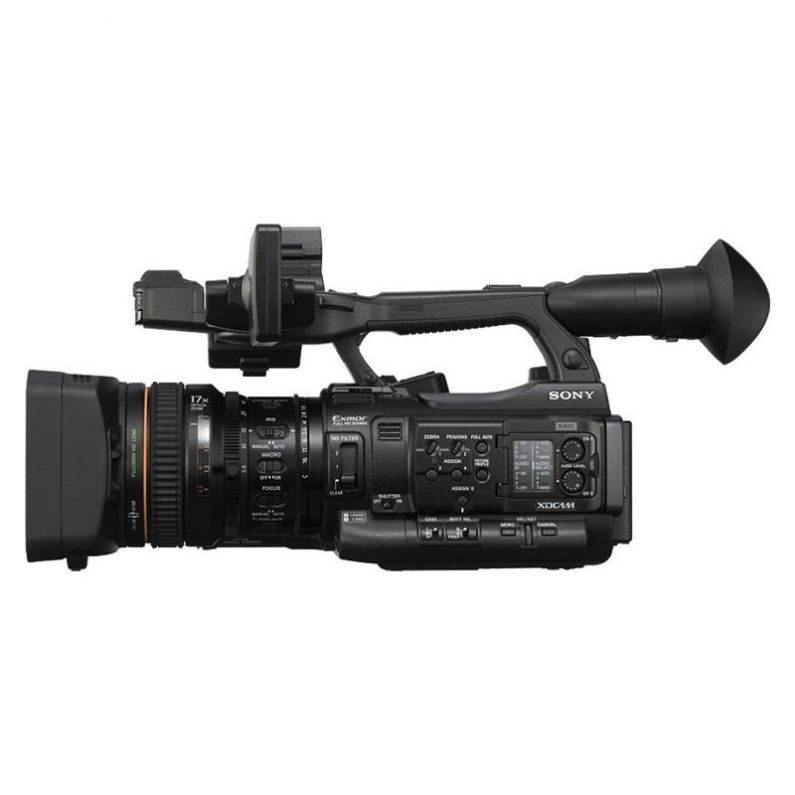

Sony PXW-X200 Full HD XDCAM Handheld Camcorder

Full HD XAVC Intra/Long GOP recordings and MPEG HD 422 50 Mbps with superb picture quality for broadcast applications such as newsgathering and documentaries The PXW-X200 three 1/2-type Exmor� CMOS sensors compact XDCAM camcorder achieves high sensitivity and low noise recordings in Full HD XAVC Intra and XAVC Long GOP, as well as MPEG HD 422 50 Mbps MPEG HD 420 35 Mbps, MPEG IMX and DV. As the successor of PMW-200, the PXW-X200 has a lot of attractive features, including dual SxS memory card slots for simultaneous recordings, cache recordings, Slow & Quick function, a 3.5 inch-type QHD (960 x 540) colour LCD panel and a 17x Fujinon professional HD zoom lens with three independent rings with end stops, able to zoom from 29.3mm to 499mm (35mm equivalent). The PXW-X200 also has a built-in wireless operation capability, and also offers remote control, file transfer, monitoring via smartphones and tablet devices, and streaming*.*A firmware version upgrade is required to activate this function. Superb picture quality Three 1/2-type Exmor� CMOS sensors for high sensitivity and low noise images. Multi-format recordings, including XAVC Full HD XAVC Intra and XAVC Long GOP, as well as MPEG HD 422 50 Mbps MPEG HD 420 35 Mbps, MPEG IMX and DV. Professional features Includes dual SxS memory card slots for simultaneous recordings, cache recordings, Slow & Quick function and a 3.5 inch-type QHD (960 x 540) colour LCD panel. 17x Fujinon professional HD zoom lens Independent focus, zoom and iris rings with end stops, able to zoom from 29.3mm to 499mm (35mm equivalent). Wireless operation capability Offers remote control, file transfer, monitoring via smartphones and tablet devices, and streaming. Streaming function requires firmware upgrade.

Camera
Imaging Device	3 x 1/2" type Exmor CMOS sensor
Effective Pixels	1920x1080 (2.07 million pixels), per sensor
Sensitivity	F12 (typical, 1080/59.94i mode) F13 (typical, 1080/50i mode)
S/N Ratio	58 dB, typical
Shutter Speed	1/32 to 1/2,000 sec
White Balance	Preset (3200K), Memory A, Memory B/ATW

Lens
Type	Fixed
Zoom Ratio	17x (optical), servo/manual
Focal Length	5.6 to 95.2 mm
35mm Equivalent Focal Length	29.3 to 499 mm
Aperture	f/1.9 to f/16 and close, auto/manual selectable
Focus Distance	31.5" (800 mm) to infinity (Macro Off) 2.0" (50 mm) to infinity (Macro On, Wide) 31.5" (800 mm) to infinity (Macro On, Tele) AF/MF/Full MF selectable
Image Stabilizer	On/Off selectable, shift lens
Filter Diameter	77 mm, pitch 0.75 mm

Recording
Video Recording Format	exFAT XAVC-Intra mode: CBG, max. 112 Mbps, MPEG-4 H.264/AVC 1920x1080p 23.98/25/29.97 1920x1080i 50/59.94 1280x720p 50/59.94 XAVC-Long 50 mode: FBR, max. 50 Mbps, MPEG-4 H.264/AVC 1920x1080p 23.98/25/29.97/50/59.94 1920x1080i 50/59.94 1280x720p 50/59.94 XAVC-Long 35 mode: VBR, max. 35 Mbps, MPEG-4 H.264/AVC 1920x1080p 23.98/25/29.97/50/59.94 1920x1080i 50/59.94 XAVC-Long 25 mode: VBR, max. 35 Mbps, MPEG-4 H.264/AVC 1920x1080i 50/59.94 MPEG HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL 1920x1080p 29.98/25/29.97 1920x1080i 50/59.94 1280x720p 23.98/25/29.97/50/59.94 MPEG HD420 HQ mode: VBR, max. 35 Mbps, MPEG-2 MP@HL 1920x1080p 23.98/25/29.97 1920x1080i 50/59.94 1440x1080p 23.98/25/29.97 1440x1080i 50/59.94 1280x720p 23.98(2-3 Pull Down)/50/59.94 DVCAM mode: CBR, 25 Mbps, DVCAM 720x480i 59.94 720x480PsF 29.97 720x576i 50 720x576PsF 25 UDF MPEG HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL 1920x1080p 29.98/25/29.97 1920x1080i 50/59.94 1280x720p 23.98/25/29.97/50/59.94 MPEG HD420 HQ mode: VBR, max. 35 Mbps, MPEG-2 MP@HL 1920x1080p 23.98/25/29.97 1920x1080i 50/59.94 1440x1080p 23.98/25/29.97 1440x1080i 50/59.94 1280x720p 23.98(2-3 Pull Down)/50/59.94 MPEG IMX50 mode: CBR, 50 Mbps, MPEG-2 422P@ML Intra 720x486i 59.94 720x486PsF 29.97 720x576i 50 720x576PsF 25 DVCAM mode: CBR, 25 Mbps, DVCAM 720x480i 59.94 720x480PsF 29.97 720x576i 50 720x576PsF 25 FAT MPEG HD420 HQ mode: VBR, max. 35 Mbps, MPEG-2 MP@HL 1920x1080p 23.98/25/29.97 1920x1080i 50/59.94 1440x1080p 23.98/25/29.97 1440x1080i 50/59.94 1280x720p 23.98(2-3 Pull Down)/50/59.94 MPEG HD420 SP mode: CBR, 25 Mbps, MPEG-2 MP@H-14 1440x1080p 23.98(2-3 Pull Down) 1440x1080i 50/59.94 DVCAM mode: CBR, 25 Mbps, DVCAM 720x480i 59.94 720x480PsF 29.97 720x576i 50 720x576PsF 25
Audio Recording Format	exFAT XAVC-Intra mode: LPCM 24-bit, 48 kHz, 4 channel XAVC-Long mode: LPCM 24-bit, 48 kHz, 4 channel MPEG HD422 mode: LPCM 24-bit, 48 kHz, 4 channel MPEG HD420 HQ mode: LPCM 16-bit, 48 kHz, 4 channel DVCAM mode: LPCM 16-bit, 48 kHz, 4 channel UDF MPEG HD422 mode: LPCM 24-bit, 48 kHz, 4 channel MPEG HD420 HQ mode: LPCM 16-bit, 48 kHz, 4 channel IMX50 mode: LPCM 24/16-bit, 48 kHz, 4 channel DVCAM mode: LPCM 16-bit, 48 kHz, 4 channel FAT MPEG HD420 HQ mode: LPCM 16-bit, 48 kHz, 4 channel MPEG HD420 SP mode: LPCM 16-bit, 48 kHz, 4 channel DVCAM mode: LPCM 16-bit, 48 kHz, 2 channel Proxy: AAC-LC, 48 kHz, 128 kbps, 2 channel
Slow & Quick Motion Function	XAVC Intra/Long mode: 1080p: 1-30 and 60 fps in NTSC setting; 1-25 and 50 fps in PAL setting 720p: 1-60 fps in NTSC setting; 1-50 fps in PAL setting MPEG HD422 mode: 1080p: 1-30 fps in NTSC setting; 1-25 fps in PAL setting 720p: 1-60 fps on NTSC settings; 1-50 fps in PAL setting MPEG HD420 HQ mode: 1080p: 1-30 fps 720p: 1-60 fps

Interface
Video Output	1 x SD/HD/3G-SDI, BNC connector 1 x HDMI, Type A
Composite Output / GENLOCK-IN	1 x BNC
Audio Input	2 x XLR 3-pin (female)
Audio Output	1 x A/V multi-connector
TC Input / Output	1 x BNC
Lens Remote Control Connector	1 x 8-pin, round
DC Input	1 x DC jack
USB	1 x USB mini-B connector
Shoe Mounts	1 x Multi-Interface
Headphone Output	1 x 3.5 mm stereo mini jack
IEEE-1394 (FireWire/DV/iLink)	1 x 4-pin, Type A

Monitoring
LCD	3.5" (8.89 cm) type 960 x 540 x 3 (RGB) 16:9
Viewfinder	0.45" (1.14 cm) type 960 x 540 x 3 (RGB) 16:9

Recording Media
Slots	2 x ExpressCard/34; supports SxS cards (for XAVC/MPEG/IMX/DV) 1 x SD/SDHC (for Proxy)

General
Built-In Microphone	Omni-direction stereo electret condenser microphone
Wi-Fi	Yes (with included IFU-WLM3 wireless module)
NFC	Yes
Power Requirements	12 VDC
Power Consumption	Approx. 18 W (while recording with LCD Off, EVF On, I/O Select Off, and wireless function Off) Approx. 23 W (while recording with LCD On, EVF Off, HD-SDI output, and wireless function On)
Battery Operating Time	BP-U90: approx. 4.5 hours BP-U60: approx. 3 hours BP-U30: approx. 1.5 hours (while recording with LCD Off, EVF On, I/O Select Off, and wireless function Off)
Operating Temperature	32 to 104 F (0 to 40 C)
Storage Temperature	-4 to 140 F (-20 to 60 C)
Dimensions (WxHxD)	6.61 x 6.34 x 13.03" (16.8 x 16.1 x 33.1 cm) (without protrusions)

Brand New Factory Fresh Import Model
